Amsoil By-Pass Oil Filters

Engineered for Outstanding Oil Filtration Efficiency

(All external links on this page open in new window)

PRODUCT DESCRIPTION

The Ea By-Pass Oil Filter (EaBP) provides the best possible filtration protection against wear and oil degradation. Working in conjunction with the engine’s full-flow oil filter, the AMSOIL Ea By-Pass Filter operates by filtering oil on a “partial-flow” basis. It draws approximately 10 percent of the oil pump’s capacity at any one time and traps the extremely small, wear-causing contaminants that full-flow filters can’t remove. The AMSOIL Ea Bypass Filter typically filters all the oil in the system several times an hour, so the engine continuously receives analytically clean oil.

Typical Installation Diagram for BMK-11 & BMK-12 Kits.

Click on diagram for larger image (Opens a new browser window)

New Aluminum Billet Oil Fill and Oil Filter Caps for BMK11 By-Pass Filtration System

aluminum billet oil filter caps AMSOIL now offers new by-pass components to ease the installation of the BMK11 By-Pass Filtration System in three popular diesel engines: the Ford 6.0L Power Stroke™, the Dodge 5.9L Cummins and the General Motors 6.6L Duramax.

Engine compartments are becoming increasingly cramped, leaving little room for after-market additions and improvements. The BMK11 is a single remote by-pass filter system that fits into much smaller spaces than the AMSOIL Dual-Remote By-Pass System.

Ford 6.0L Power Stroke™ Diesels
To ease installation of the BMK11 on 2003 and later model Ford pickups equipped with the 6.0L Power Stroke™ diesel engine, AMSOIL provides the new Aluminum Billet Oil Filter Cap (BK1101), the Aluminum Billet Oil Fill Cap (BK1102) and the 90-degree JIC Elbow (BP242). These new high-quality billet aluminum caps replace the original equipment manufacturer (OEM) filter cap and oil fill cap. The new caps have holes tapped in them that accept the JIC elbows for hose connectors.

Dodge 5.9L Cummins Diesels
To ease installation of the BMK11 in 2004 and later model Dodge pickups equipped with the 5.9L Cummins diesel engine, AMSOIL offers the new 1/8" NPT - 1/4" JIC fitting (BP241), the Aluminum Billet Oil Fill Cap for Dodge 5.9L Cummins diesels (BK1301) and the 90-degree JIC Elbow (BP242). The BP241 fits onto the existing plug on top of the OEM full-flow filter mount, and the addition of the BK1301 eases the installation of the oil return line.

General Motors 6.6L Duramax Diesels
To provide GM Duramax owners the same ease of installing the BMK11, AMSOIL is now offering an oil filter “Sandwich” adapter (BK1201).

The Sandwich adapter is an anodized billet aluminum adapter that screws on to the present full flow oil filter nipple located on the engine block. The full flow filter is then simply spun on to the adapter. The Sandwich adapter has an orifice to provide high-pressure oil feed for the BMK11. Like the other diesel applications, AMSOIL now offers an Aluminum Billet Oil Filler Cap for (BK1202) to ease the installation of the oil flow from the BMK11 back to the engine. To complete an installation, the following components must be purchased separately:

   1. Aluminum oil filter Sandwich Adapter with o-ring (BK1201)
   2. Aluminum Billet Oil Filler Cap for GM Duramax (BK1202)
   3. Two 90 degree JIC Elbows (BP242)
   4. Single Remote By-pass system (BMK11)
   5. By-pass filter (EaBP90, EaBP100, or EaBP110, as space dictates)

Higher Efficiency
AMSOIL EaBP Filters have an efficiency of 98.7 percent at two microns. At normal operating RPMs the EaBP Filter will filter all of the oil in a typical five quart sump in less than 10 minutes.

Superior Construction
The superior construction of AMSOIL EaBP Filters provides better sealing and increased longevity along with superior corrosion resistance. AMSOIL EaBP Filters have a marine powder coated exterior; and their zinc-dichromate base plates increase rust protection. EaBP Filters have a nitrile HNBR gasket and an orange silicone anti-drain valve. The two stage pleated and layered cellulose/full synthetic media has an efficiency rating of 98.7 percent at two microns.

Longer Lasting
When used in conjunction with AMSOIL motor oil and an AMSOIL EaO or Donaldson Endurance™ filter, the EaBP should be changed every other full-flow filter change up to 60,000 miles. When used with other brands of motor oil or full-flow filters, the EaBP Filter should be changed every other full-flow filter change. AMSOIL recommends using oil analysis when extending oil drain intervals.

Increased Oil Capacity
The increased fluid system capacity and filtration life provides improved oil cooling and ensures that equipment constantly runs on clean oil. Engine efficiency is increased, providing extended engine life.

Soot Removal
AMSOIL has designed a new high-efficiency by-pass filter element that is also a soot removal device. AMSOIL Ea By-Pass Filters use a synthetic/cellulose sandwiched media. The inner layer of the element is composed of a highly efficient cellulose media covered with a full synthetic media outer layer. These filters remove 39 percent of soot contaminants less than one micron. Soot removal efficiency increases approximately 10 to 14 percent when the EaBP Filter is used in conjunction with a standard full-flow filter.

By-Pass Filtration Benefits

   • Dramatically Extended Drain Intervals
   • Improved Oil Cooling
   • Increased Filtration Capacity and Life
   • Increased Fluid System Capacity
   • Efficient Small Particle and Soot Removal
   • Significantly Extended Engine Life
   • Equipment Constantly Runs on Clean Oil
   • Increased Engine Efficiency
   • Remove Particles Less Than One Micro

Dual Remote Filter System
The AMSOIL Dual Remote Oil Filtration System converts an engine’s full-flow oil filter system into
a full-flow/by-pass oil filtration system by attaching an AMSOIL Full-Flow Oil Filter and AMSOIL
Spin-On By-Pass Oil Filter onto a remote mount. The Dual Remote System provides superior filtration efficiency, increased oil capacity and improved oil filtration accessibility. See the G1092 brochure for more info on the Dual Remote Filtration System.

Typical Installation Diagram for BMK-13, BMK-15Ea, BMK-16Ea and BMK-17Ea Kits.

Click on diagram for larger image (opens in new window)

See the By-Pass Replacement Parts List

AMSOIL By-Pass Filter Replacement Chart

Type of Unit

Stock Number

Size (Approx.)

Additional Oil Needed

Crankcase Capacity

Applications

Single Spin On Element

(Used with BMK-11 or any Dual Remote System)

EaBP-90

Diam. = 4.5 in.
Height = 6 in.
With Mnt. = 8 in.

1 qt.

up to 9 qt.

Pleasure Vehicles, Light Trucks and Smaller Commercial Applications

EaBP-100

Diam. = 4.5 in.
Height = 8 in.
With Mnt. = 10 in.

1.5 qt.

up to 15 qt.

EaBP-110

Diam. = 4.5 in.
Height = 10 in.
With Mnt. = 12 in.

2 qt.

up to 21 qt.

DUAL SPIN-ON ELEMENT

Used with BMK-12 Dual Guard

(2) EaBP-90's

Diam. = 5 in.
Height = 5.8 in.
With Mnt. = 8 in.

2 qt.

15 to 18 qt.

Large Trucks, Construction, Farm and Industrial Equipment (minimum sump capacity equals 15qts.)

(2) EaBP-100's

Diam. = 5 in.
Height = 7.3 in.
With Mnt. = 10 in.

3 qt.

15 to 30 qt.

(2) EaBP-110's

Diam. = 5 in.
Height = 10.4 in.
With Mnt. = 12 in.

4 qt.

15 to 42 qt.

Normal Service Life ^b: When used in conjunction with AMSOIL motor oil and an EaO or Donaldson Endurance filter, the EaBP should be changed every other full flow filter change up to 60,000 miles. When used with other brands of motor oil or full flow filters, the EaBP filter should be changed every other full flow filter change. AMSOIL recommends using oil analysis when extending oil drain intervals.

a. Filters can be used on sumps of larger capacity but then require more frequent replacement. Full details on service life included with filter installation instructions

b. Data determined in a non-turbo gasoline engine with AMSOIL 100% Synthetic Motor Oil and AMSOIL Full-Flow Oil Filter. Service life varies in other engines (turbo and diesel) and with other oils and filters.

NOTES:

1. Special adapters and hardware may be required for some installations. A universal mounting bracket is included with the kit, however, custom brackets may be required depending on your vehicle's equipment options or personal preferences in mounting locations."

2. Contact AMSOIL INC. Technical Service for instructions before installing on vehicles with cast aluminum oil pans.

APPLICATIONS (See the Filtration Systems Application Guide)

Mount

Filter (order separately unless noted)

BMK-11

Any size Amsoil Spin-On By-Pass Filter Element

BMK-13

Any size Amsoil Spin-On By-Pass Filter Element

BMK-15Ea (Complete with Filters)

EaO-26 and EaBP-100 (Complete with Filters) The BMK-15Ea Dual Remote Filtration System is not recommended for 2004 and newer Dodge pickups equipped with Cummins 5.9L diesel engines. AMSOIL is recommending the BMK-11 for these applications. AMSOIL still recommends the BMK-15Ea for 2003 and older Dodge pickups equipped with this engine.

BMK-16Ea (Complete with Filters)

International Diesels

EaO-26 and EaBP-100 (Complete with Filters)

BMK-17Ea (Complete with Filters)

Duramax Diesels (in GM pickups)

EaO-26 and EaBP-100 (Complete with Filters)

Vehicles with sump capacities greater than 15qts.

Mount

Filter

BMK-12 Dual Guard

Any size Amsoil Spin-On By-Pass (mount requires 2 filters)

Amsoil Product and Catalog Request Info

Company Name:
First Name:	Required
Last Name:	Required
Street Address:	Required
City:	Required
State or Providence:	Required
Zip Code:	Required
Phone Number:	Required
Email Address:	Required
Make and Model of Vehicle:	Required
Vehicle Year:	Required
Number of Cylinders:	Required
Gas or Diesel Engine:	Required
Two or four wheel drive:	Required
Further Vehicle Info:
Motorcycles boats etc info:
Retail Store Owners:	Required
Own a business (Required):
Send me Amsoil Dealer Info:	Required
Send Preferred Customer Info:	Required

Amsoil by-pass Filter photos

BMK-11	BMK-12	BMK-13	BMK-15Ea, 16Ea & 17Ea

BMK-18		AMS-Oiler™ Oil Precharger

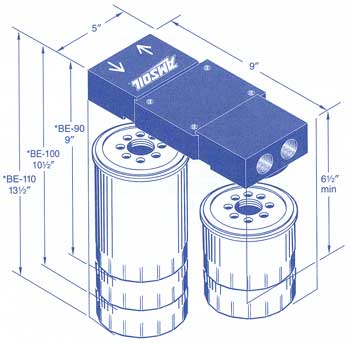

Sample Kit		Filter Sizes
